Description

This page describes the workspace reach requirements for the Baxter Research Robot.

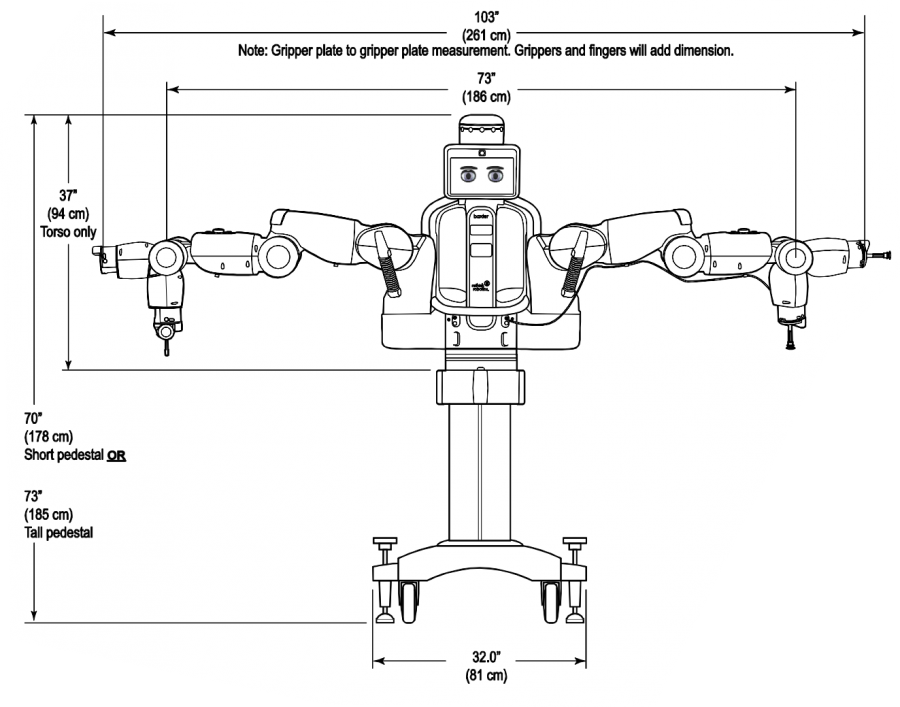

Baxter Dimensions Front

Workspace front.png

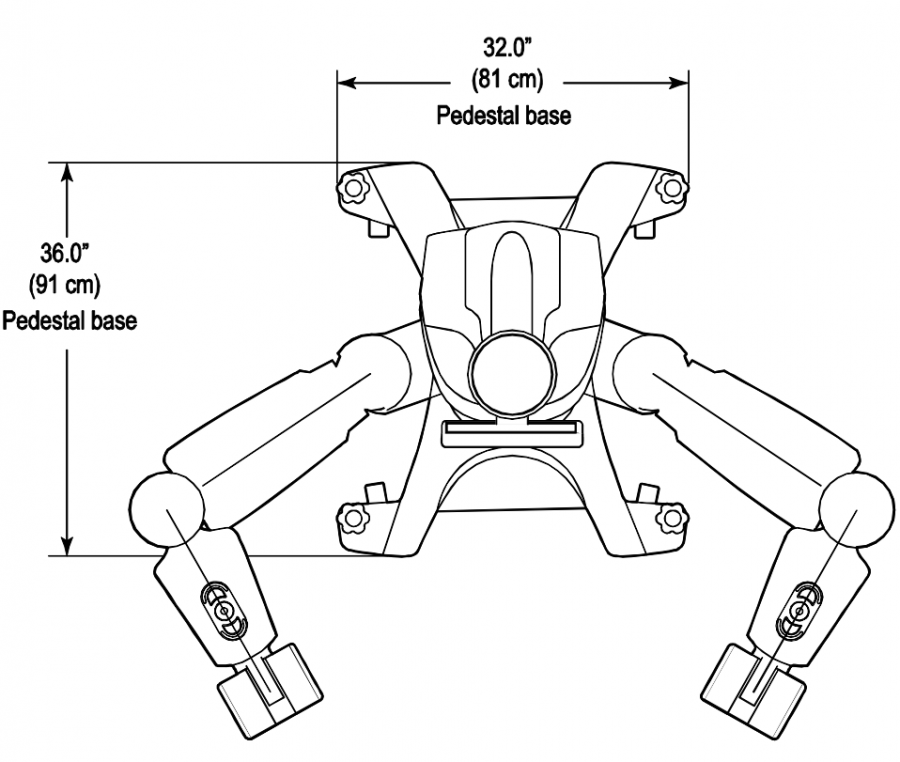

Pedestal Footprint

Workspace top.png

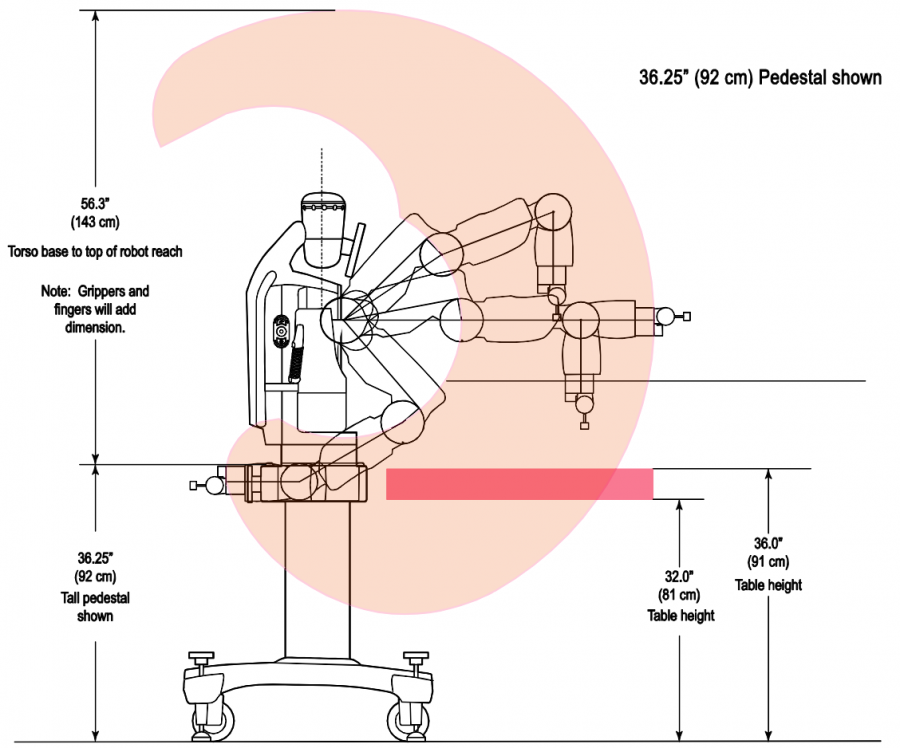

Workspace Reach Profile

Workspace side.png

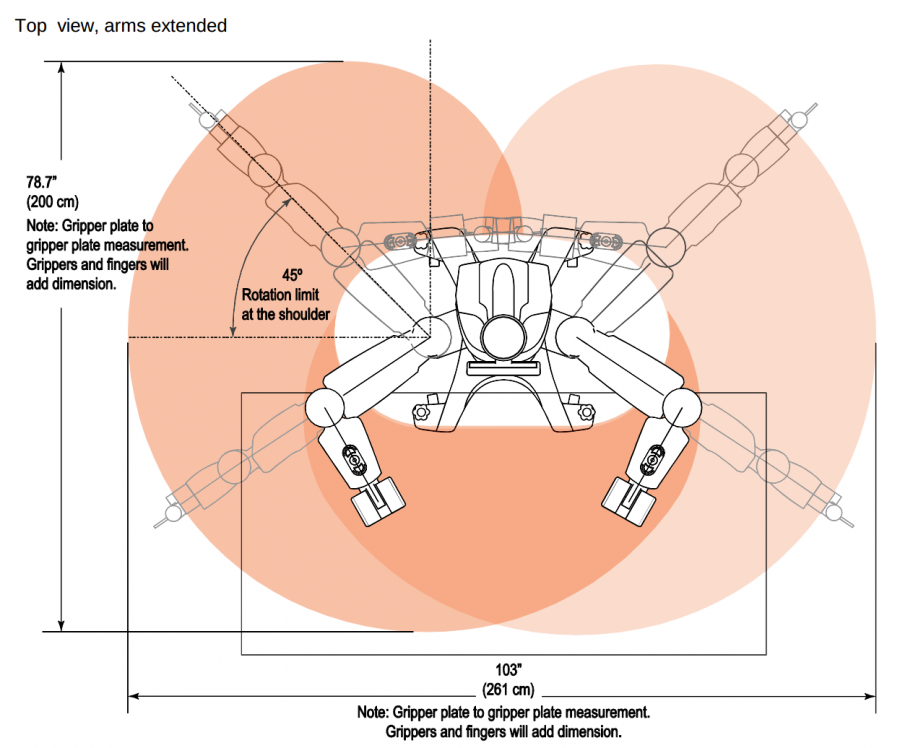

Workspace Reach Overhead

Workspace overhead.png

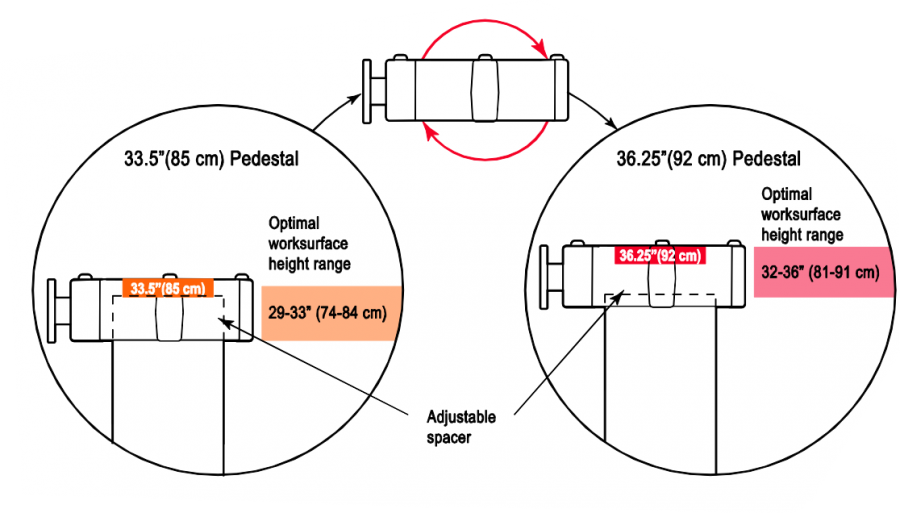

Pedestal Height Offset

Pedestal height.png
